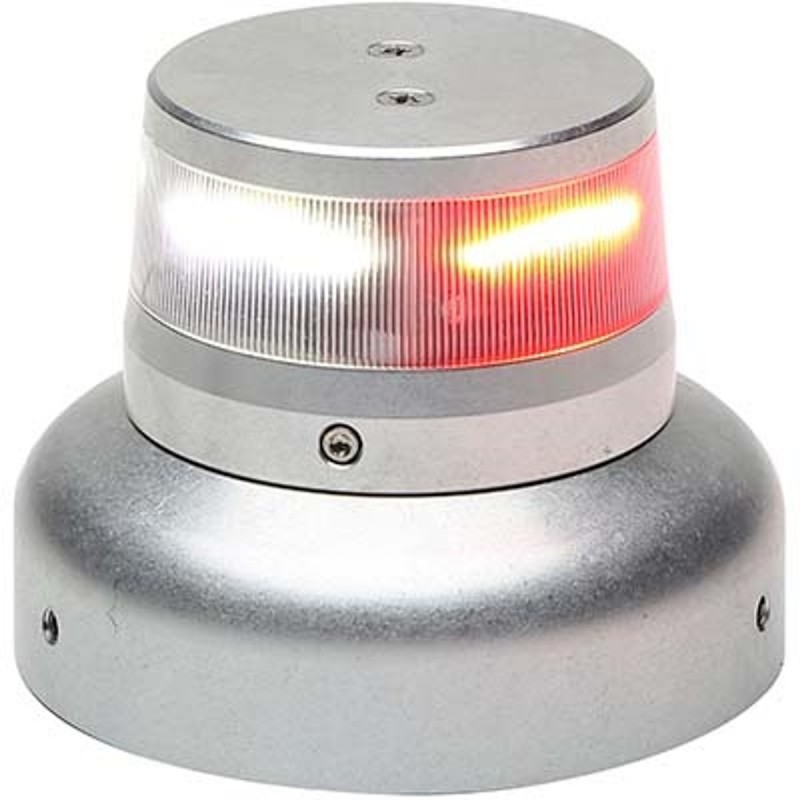

01-0772010-32 ORION 360 Red/White Split LED Beacon 28 VDC, 3.75" Model OR36S2W

Whelen ORION 360 Red/White Split LED Beacon 28 VDC, 3.75" Dia. Part 01-0772010-32. Model OR36S2W.

ORION 360 Beacons are the 4th Generation LED beacons for fixed wing aircraft. These are designed to replace legacy 2.6" and 3.75" round beacons. ORION 360 beacons are lower profile than legacy product by 60%. Please see documents for more information on this product.

Model OR36S2W is designed with 10 red and 8 white LEDs.

Available in 14 VDC and 28 VDC. Red , Red / White Split, and White assemblies available.

Part Number: OR36S2W

Approval Basis:STC SA615EA, FAA TSO-C96a Class III

Specifications:

Operational Voltage:.............................28 VDC

Average Input Current:....................0.26 Amps

Pulse:..................................................1.4 Amps

Flashrate:.........................................45± 4 FPM

Weight:..........................................0.37 lbs.(ref.)

Notes: DIA. 3.7" AT BASE,  EXPOSED HEIGHT 2.0"
