01-0772010-50 Whelen  Model OR36R1N Red LED 14V Beacon (2.6" Base)
  • 01-0772010-50 Whelen  Model OR36R1N Red LED 14V Beacon (2.6" Base)

01-0772010-50 Whelen Model OR36R1N Red LED 14V Beacon (2.6" Base)

(0)Review
958,38 €
TTCLivraison entre 10 et 15 jours (Pour les pièces disponible Fournisseur)
0 items

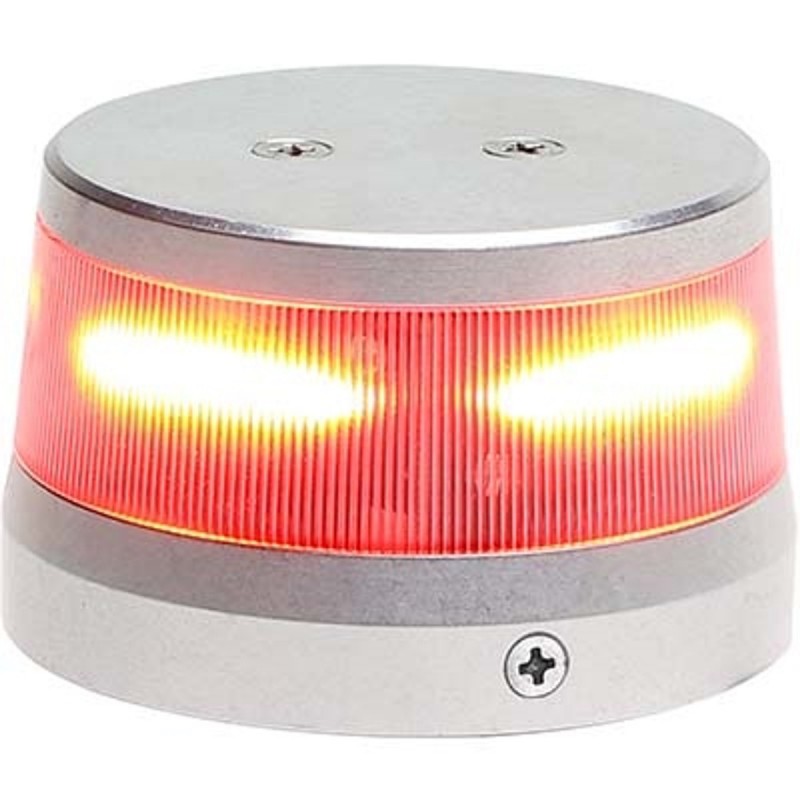

Whelen ORION 360 LED Beacon Red 14VDC, 2.6" Dia Base 01-0772010-50 Model OR36R1N

ORION 360 Beacons are the 4th Generation LED beacons for fixed wing aircraft. These are designed to replace legacy 2.6" and 3.75" round beacons. ORION 360 beacons are lower profile than legacy product by 60%.

Model OR36R1N is designed with 20 red LEDs.

Available in 14 VDC and 28 VDC. Red , Red / White Split, and White assemblies available.

Part Number: OR36R1N

Approval Basis:STC SA615EA, FAA TSO-C96a Class III

Aircraft Eligibility:Virtually any model

Specifications:

Operational Voltage:.............................14 VDC

Average Input Current:....................0.53 Amps

Pulse:..................................................2.8 Amps

Flashrate:.........................................45± 4 FPM

Weight:..........................................0.37 lbs.(ref.)

Notes:Diameter 2.6"  Height 1.6"

01-0772010-50
