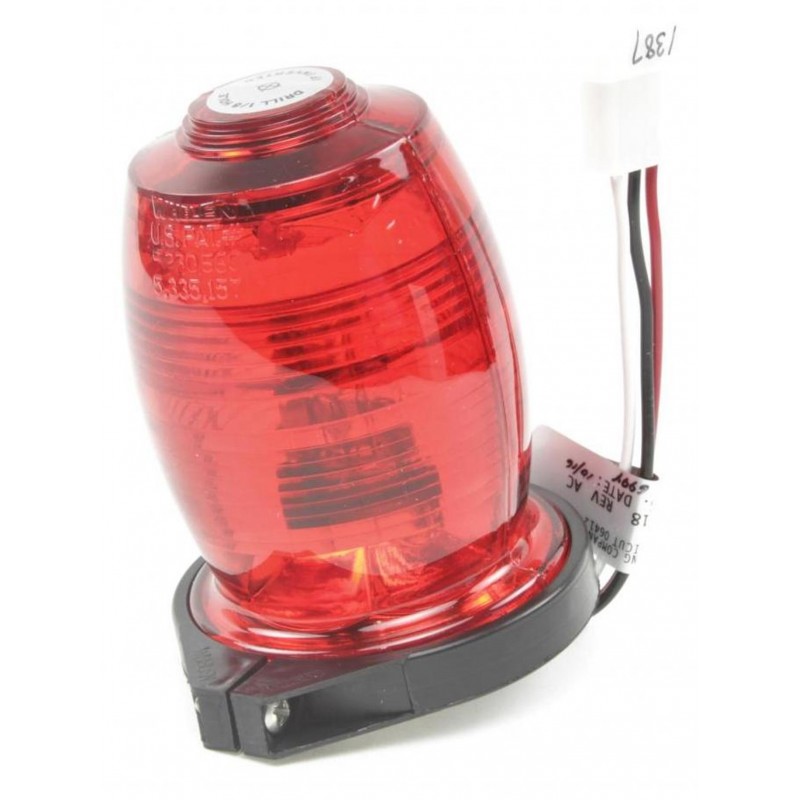

Whelen A470AR Strobe Head Assembly Red Lens.

A remote strobe light assembly, compatible with all Whelen power supplies.

It can be installed on the fuselage or the vertical fin. The unique polycarbonate optic

lens and reflector design, re-directs stray light rays into the horizontal plane to provide

the maximum 360 degrees of uniform light coverage possible.

Available in three different lens colors, Aviation Red, Aviation White and Split Aviation Red/White.

Available in radio-shielded configurations.

All assemblies require either the model H102 or H103 mounting adapter.

Part Number: A470AR, 01-0770019-18

Approval Basis: FAA/PMA, STC SA800EA

Replaces: SDI / Hoskins  201803-2

Specifications: Weight: 0.3 lbs.Exposed Height: 3.75"Diameter: 2.5"
