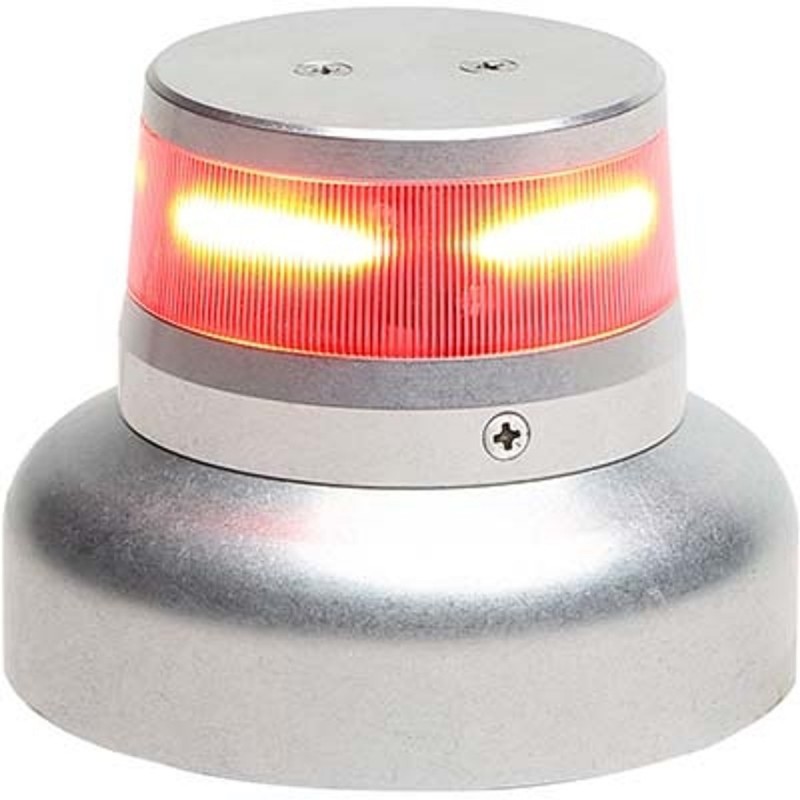

Whelen ORION 360 LED Beacon Red 28VDC, 3.75" Dia. Part 01-0772010-12, Model OR36R2W

ORION 360 Beacons are the 4th Generation LED beacons for fixed wing aircraft. These are designed to replace legacy 2.6" and 3.75" round beacons. ORION 360 beacons are lower profile than legacy product by 60%.

Model OR36R2W and OR36R2WL are designed with 20 red LEDs.

Available in 14 VDC and 28 VDC. Red , Red / White Split, and White assemblies available.

Part Number: OR36R2W

Approval Basis: STC SA615EA, FAA TSO-C96a Class III

Specifications:

Operational Voltage:.............................28 VDC

Average Input Current:....................0.26 Amps

Pulse:..................................................1.4 Amps

Flashrate:.........................................45± 4 FPM

Weight:..........................................0.37 lbs.(ref.)

Notes: DIA. 3.7" AT BASE,  EXPOSED HEIGHT 2.0"
